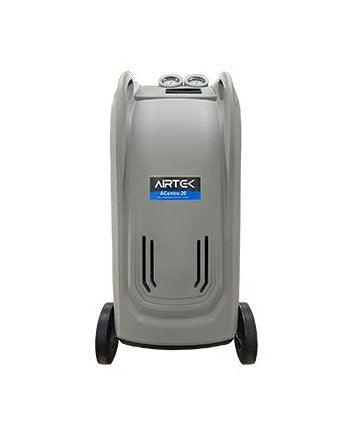

New SAE Certified Advanced 1234YF AC Recovery and Recharge Machine with Identifier

(100+ rating)
$5,680.00
{price}% OFF

In Stock

WARRANTY
  • One Year
  • Two Years
  • Three Years
Model:  ACentre-20       P/N: ATX550

ACentre-20 integrates normal auto A/C services (recovery, vacuum, oil injection and refrigerant charge) and specialized compressor oil replacement function, in both individual function and automatic sequence modes. As SAE J2843 approved, the machine offers "normal charging" for traditional fuel vehicles and "high voltage charging" for EV and HV, in later mode internal pipeline cleaning is performed to remove oil residue. This helps avoid electric insulation fault in HV and EV caused by contamination of oil with electric conductivity nature.

  • Fully Automatic

  • Refrigerant & Oil Database

  • Thermal Printer

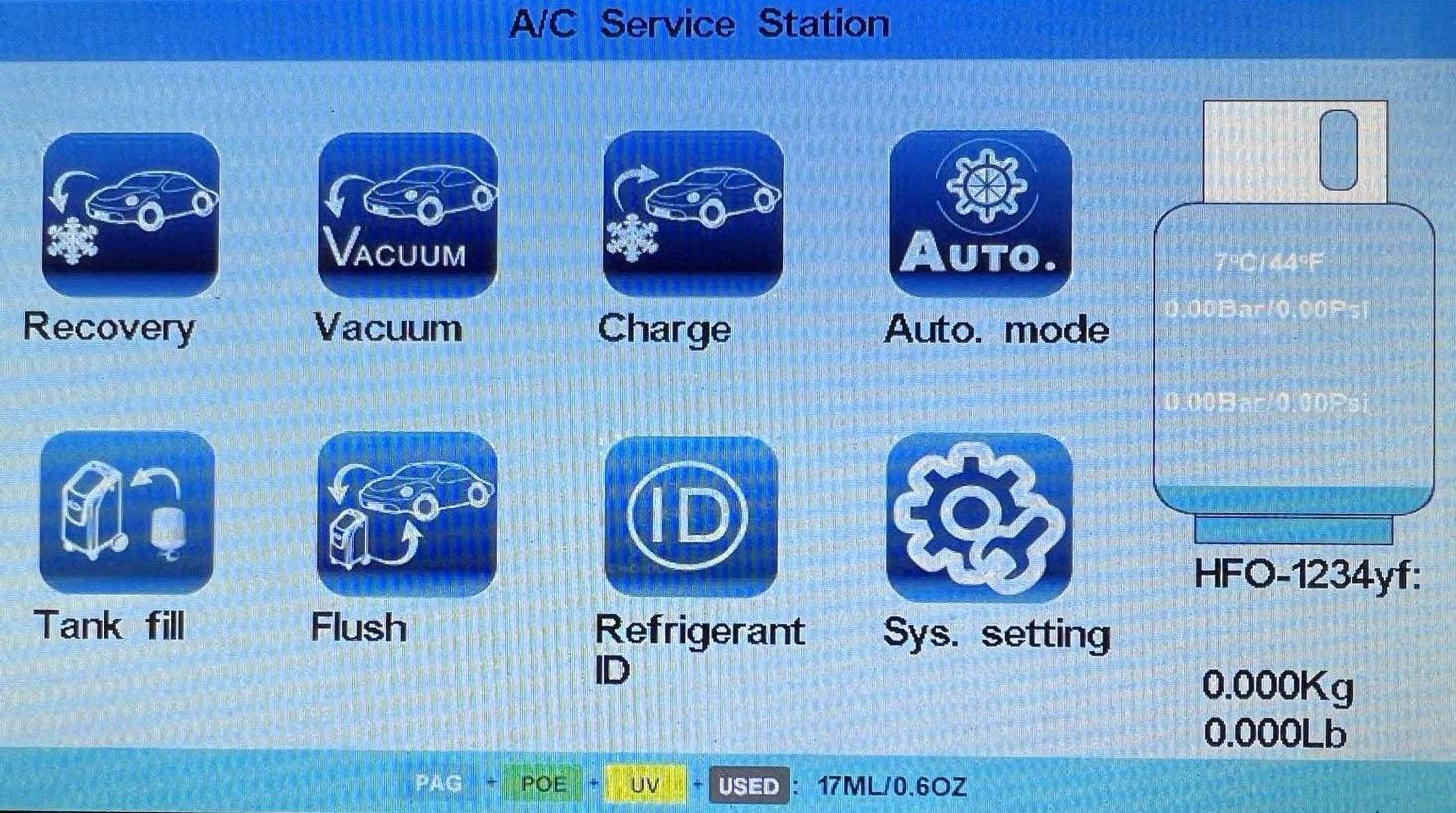

  • 7-inch touch screen

  • Loss of Refrigerant during Refrigerant Change is Minimized

  • Recovery with SRR feature, SRR (Supreme Recovery Rate) system, patent pending, assures a recovery rate higher than 99%

  • Charge (including PAG or POE oil injection, UV injection and refrigerant charge)

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Guarantee safe & secure checkout

FUNCTIONS

SPECIFICATIONS

MANUALS

14
  1. Input power: AC110v±10%~50/60Hz
  2. Compressor power: 3/8HP
  3. Display: 7'' touch screen
  4. Max. refrigerant recovery speed: 0.25Kg/min. Patent pending SRR (Supreme Recovery Rate) system ensures 99% recovery rate
  5. Vacuum pump capacity: 120L/min
  6. Evacuation time selection: 2-60 min
  7. New oil vessel: 250ml capacity, PAG/POE/UV
  8. Used oil vessel: 400ml capacity
  9. Refrigerant charging speed: Max. 1Kg/Min, liquid charging
  10. High capacity spin-on filter-drier: 600ml capacity, for recovering totally 100KG refrigerant
  11. Accuracy of refrigerant cylinder load cell: ±5g
  12. Refrigerant cylinder: 10KG, with heater band
  13. Machine maximum working pressure: 20bar with electronic high-pressure protection warning and safety release valve

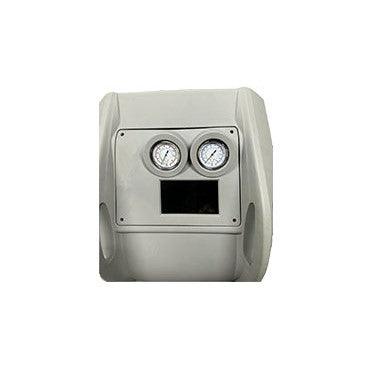

  14. Gauges: High side -1bar~30bar, Low side -1bar~16bar
  15. Digitally displayed cylinder pressure and temperature, electronically controlled air purge
  16. Automatic Non-condensable purge (NCG) based on HFO-1234yf pressure-termperature nature
  17. Vehicle A/C database included
  18. Electronically monitoring and displaying system service intervals
  19. Thermal printer
  20. Package: 720*780*1285mm; Unpacked: 644*731*1147mm
13_444c50ae-ac5b-4099-9aff-edb320399d1d

Operation Manual

pdf

HIGHLIGHT FEATURES

Customers Also Bought

Frequently Asked Questions

What are the differences between your three 1234yf AC machines, AC-1234-20, AC-1234plus and ACentre20?

AC-1234plus is designed with a touchscreen for an enhanced customer experience compared to the AC-1234-20.

ACentre20, a newly launched SAE-certified 1234yf machine, offers powerful features beyond AC-1234plus, including a built-in identifier, flushing functionality, and optional AC diagnostic features.

Should 1234yf AC mahcine use PAG or POE oil?

1234yf AC systems typically use PAG oil as a lubricant. However, it's essential to consult the specific manufacturer's recommendations or the AC machine's manual to ensure the correct type and amount of oil for the system. Additionally, some systems may use a different oil, such as POE, so it's crucial to verify the compatibility with the refrigerant and the manufacturer's guidelines.

How often does your AC machine need to have the filter replaced for maintenance? How is it done?

The filter should be replaced every 600 service cycles or when the refrigerant recovery volume reaches 220 lbs. You can purchase a filter or a maintenance kit, which includes a filter, on our website.

After replacing the filter, reset the machine. For specific steps on replacing the filter and resetting the machine, please refer to the product description of the filter on our website or check the maintenance page under the service section.
